Guide to Shipping Container Dimensions

Type
Container Type

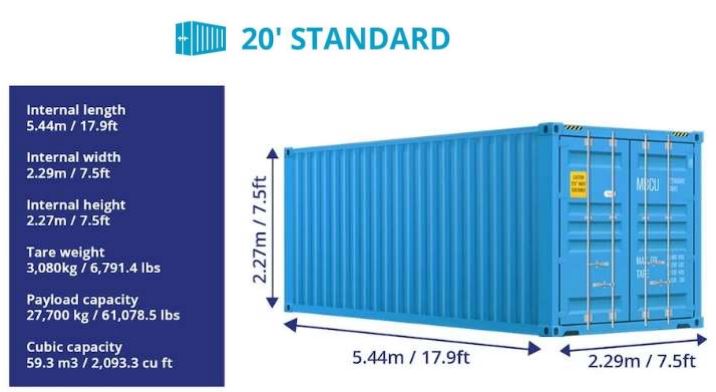

20' Standard

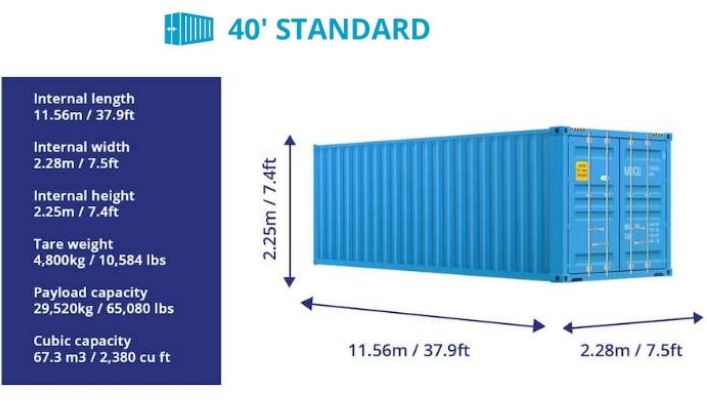

40' Standard

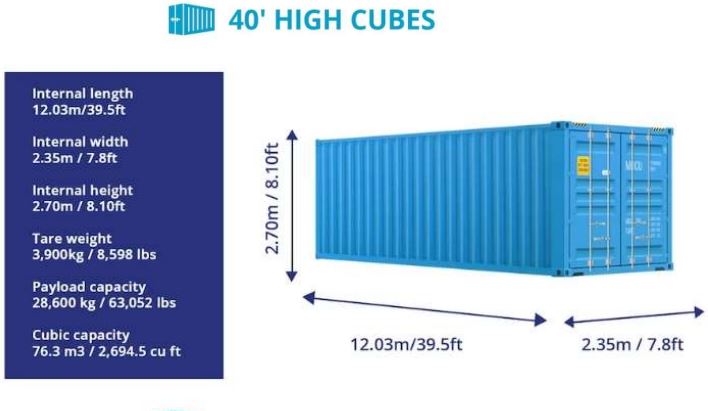

40' HC Standard
Price
Maximum Gross Wt
30,480 kg (67,200 lb.)
30,480 kg (67,200 lb.)
30,480 kg (67,200 lb.)
Get a Quote
Tare Weight
2,200 kg (4,850 lb.)
3,655 (8,050 lb.)
3,870 kg(8,532 lb.)
Get a Quote
Payload
28,280 kg(62,350 lb.)
26,825 kg(59,142 lb.)
26,610 kg(58,668 lb.)
Get a Quote

External Dimensions


Length
6,058 mm(19′-10½”)
12,192 mm(40′-0″)
12,192 mm(40′-0″)
Get a Quote
Width
2,348 mm(7′-8½”)
2,438 mm(8′-0″)
2,438 mm(8′-0″)
Get a Quote
Height
2,591 (8′-6″)
2,591 mm(8′-6″)
2,896 mm(9′-6″)
Get a Quote

Internal Dimensions


Length
5,900 mm(19′-4¼”)
12,025 mm(39′-5½”)
12,025 mm(39′-5½”)
Get a Quote
Width
2,348 mm(7′-8½”)
2,348 mm(7′-8½”)
2,348 mm(7′-8½”)
Get a Quote
Height
2,385 mm(7′-9 7/8″)
2,385 mm(7′-9 7/8″)
2,690 mm(8′-9 7/8″)
Get a Quote

Door Opening


Width
2,340 mm(7′-8 1/8″)
2,340 mm(7′-8 1/8″)
2,340 mm(7′-8 1/8″)
Get a Quote
Height
2,275 mm(7′-5 5/8″)
2,275 mm(7′-5 5/8″)
2,578 mm(8′-5½”)
Get a Quote

Cube


Cubic Capacity
33.04 m³(1,166 ft.³)
67.34 m³(2,377 ft.³)
75.95 m³(2,681 ft.³)
Get a Quote

Test Loads


Stacking
97,200 kg(214,290 lb.)
97,200 kg(214,290 lb.)
97,200 kg(214,290 lb.)
Get a Quote
Transverse Racking
15,240 kg(33,600 lb.)
15,240 kg(33,600 lb.)
15,240 kg(33,600 lb.)
Get a Quote
Longitudinal Racking
L 24 W 73 H 7
7,620 kg(16,800 lb.)
7,620 kg(16,800 lb.)
Get a Quote




Type
Roll Trailer Type
20 Foot
40 Foot
60 Foot
Price
Maximum Rolltrailer Length
6,1 meter(20 ft)
12,2 meter(40 ft)
18,9 meter (60 ft)
Get a Quote
Maximum Rolltrailer Width
2,5 meter(8,20 ft)
2,6 meter(8,53 ft)
2,55 meter(8,37 ft)
Get a Quote
Maximum Cargo Width
6,5 meter(21,32 ft)
6,5 meter(21,32 ft)
6,5 meter(21,32 ft)
Get a Quote
Maximum Cargo Weight
25 Tons
120 Tons
90 Tons
Get a Quote

Type
Container Type
20′ Flat Rack
40′ Flat Rack
Price
Maximum Gross Weight
34,000 kg(74,950 lb.)
45,000 kg(99,207 lb.)
Get a Quote
Tare Weight
2,740 kg ( 6,040 lb.)
4,795 kg ( 10,570 lb.)
Get a Quote
Payload
31,260 kg (68,860 lb.)
40,205 kg (88,627 lb.)
Get a Quote
Concentrated load over center 2
20,000 kg (44,090 lb.)
25,400 kg (55,997 lb.)
Get a Quote

External Dimensions


Length
6,058 mm (19′-10½”)
12,192 mm (40′-0″)
Get a Quote
Width
2,438 mm (8′-0″)
2,438 mm (8′-0″)
Get a Quote
Height
2,591 mm (8′-6″)
2,591 mm (8′-6″)
Get a Quote
(Folded) Height
370 mm (14½”)
641 mm (25¼”)
Get a Quote

Internal Dimensions


Length (side access)
5,613 mm (18′-4 15/16″)
11,762 mm (38′-7 1/16″)
Get a Quote
Width (deck)
2,218 mm (7′-3 3/8″)
2,378 mm (7′-9 5/8″)
Get a Quote
Height
2,213 mm (7′-3 1/8″)
1,960 mm (6′-5 3/16″)
Get a Quote

Test Loads


Stacking
86,400 kg (190,447 lb.)
86,400 kg (190,447 lb.)
Get a Quote
Transverse Racking
15,240 kg ( 33,600 lb.)
15,240 kg ( 33,600 lb.)
Get a Quote
Longitudinal Racking
7,620 kg ( 16,800 lb.)
7,620 kg ( 16,800 lb.)
Get a Quote
Floor Strength
7,260 kg ( 16,000 lb.)
7,260 kg ( 16,000 lb.)
Get a Quote
Lashing Points
5,000 kg ( 11,025 lb.)
5,000 kg ( 11,025 lb.)
Get a Quote


Type
Container Type

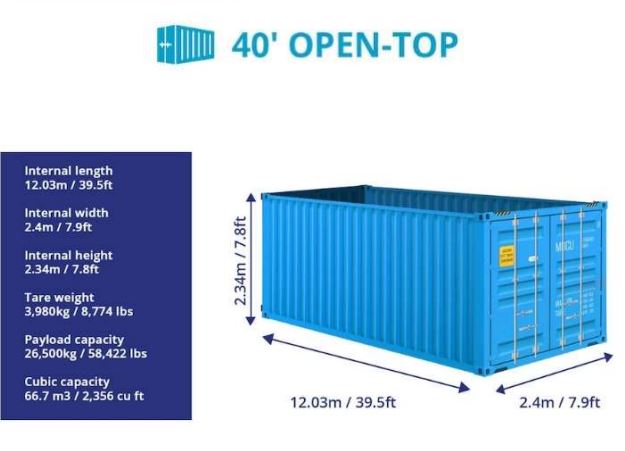

20′ Open Top
40′ Open Top
Price
Maximum Gross Weight
30,480 kg (67,200 lb.)
30,480 kg (67,200 lb.)
Get a Quote
Tare Weight
2,260 kg ( 4,982 lb.)
3,980 kg ( 8,774 lb.)
Get a Quote
Payload
28,220 kg (62,218 lb.)
26,500 kg (58,426 lb.)
Get a Quote

External Dimensions


Length
6,058 mm (19′-10½”)
12,192 mm (40′-0″)
Get a Quote
Width
2,438 mm (8′-0″)
2,438 mm (8′-0″)
Get a Quote
Height
2,591 mm (8′-6″)
2,591 mm (8′-6″)
Get a Quote

Internal Dimensions


Length
5,899 mm (19′-4¼”)
12,024 mm (39′-5 3/8″)
Get a Quote
Top Aperture Length
5,787 mm (18′-11 13/16″)
11,809 mm (38′-8 15/16″)
Get a Quote
Width
2,352 mm (7′-8 19/32″)
2,350 mm (7′-8 9/16″)
Get a Quote
Top Aperture Width
2,250 mm (7′-4 5/8″)
2,230 mm (7′-3 7/8″)
Get a Quote
Height
2,351 mm (7′-8½”)
2,351 mm (7′-8½”)
Get a Quote

Door Opening


Width
2,340 mm (7′-8 1/8″)
2,338 mm (7′-8″)
Get a Quote
Height
2,295 mm (7′-5 7/8″)
2,279 mm (7′-5¾”)
Get a Quote

Cube


Cubic Capacity
32.2 m³ (1,137 ft.³)
67.0 m³ (2,366 ft.³)
Get a Quote

Test Loads


Stacking
97,200 kg (214,290 lb.)
97,200 kg (214,290 lb.)
Get a Quote
Transverse Racking
15,240 kg ( 33,600 lb.)
15,240 kg ( 33,600 lb.)
Get a Quote
Longitudinal Racking
7,620 kg ( 16,800 lb.)
7,620 kg ( 16,800 lb.)
Get a Quote
